  3. 113.13 Series 2 or 2-1/2" Plastic Hydraulic Pressure Gauge, Liquid Filled, Brass Wetted Parts
PressureWorx
‎
113.13 Series 2 or 2-1/2" Plastic Hydraulic Pressure Gauge, Liquid Filled, Brass Wetted Parts

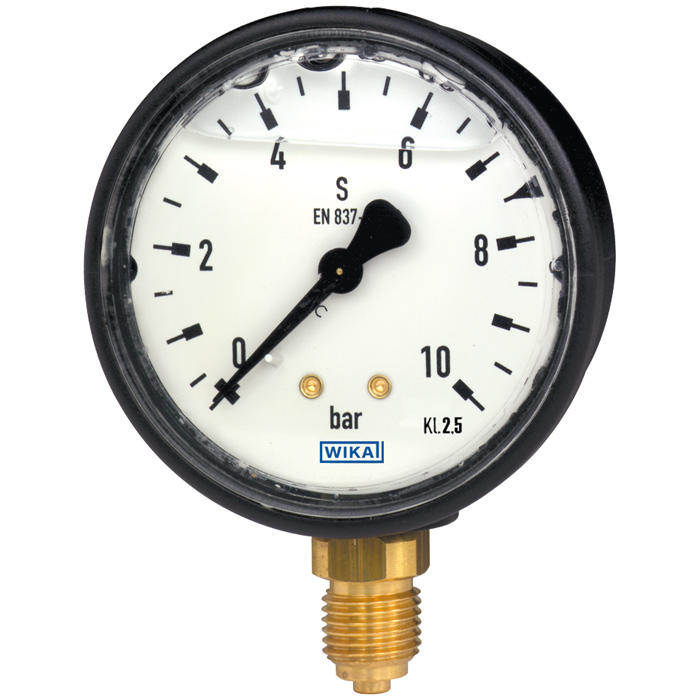

Representative photo. Please check item description for details.

113.13 Series 2 or 2-1/2" Plastic Hydraulic Pressure Gauge, Liquid Filled, Brass Wetted Parts

https://www.pressureworx.com/web/image/product.template/543449/image_1920?unique=5818d97
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

The Model 113.13 is a durable, liquid-filled mechanical pressure gauge specifically designed for challenging hydraulic and industrial applications. Its robust construction and internal damping provide stability and accuracy in environments subject to high vibration and shock.

Features

  • Available Nominal Sizes: Offered in 2" (50 mm) and 2.5" (63 mm) diameters, suitable for applications requiring clear readability.

  • Liquid-Filled Design: Provides essential damping of internal components, offering superior resistance to vibration and hydraulic shock for extended service life and stable readings.

  • Bourdon Tube System: Utilizes the reliable and proven Bourdon tube measuring principle for accurate pressure indication.

  • IP65 Protection: Achieves high ingress protection (dust-tight and protected against water jets) through a construction featuring a welded plastic case/window and an O-ring sealed process connection.

  • Accuracy Class 2.5: Meets industry standards for general-purpose pressure measurement applications.

  • Versatile Mounting Capable: Supports multiple installation options:

    • Panel Mounting (All Sizes): Optional mounting bracket is available for instruments with a back mount process connection.

    • Front Flange Mounting (2.5" only): The 2.5" (63 mm) version with a back mount process connection is alternatively offered with a mounting flange on the front, ideal for installations where panel mounting must be done from the front side.

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Case
  • Mounting Flange / Bracket
  • Restrictor
  • Accuracy Class
  • Special Design Features
  • Case Filling
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Pointer
  • Thread Protection
  • Packing
  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material
  • Gauge: Bezel Material
  • Gauge: Window Ring
  • Gauge: Wetted Material
  • Gauge: Fill Type
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range

This combination does not exist.

The Model 113.13 is a durable, liquid-filled mechanical pressure gauge specifically designed for challenging hydraulic and industrial applications. Its robust construction and internal damping provide stability and accuracy in environments subject to high vibration and shock.

Features

  • Available Nominal Sizes: Offered in 2" (50 mm) and 2.5" (63 mm) diameters, suitable for applications requiring clear readability.

  • Liquid-Filled Design: Provides essential damping of internal components, offering superior resistance to vibration and hydraulic shock for extended service life and stable readings.

  • Bourdon Tube System: Utilizes the reliable and proven Bourdon tube measuring principle for accurate pressure indication.

  • IP65 Protection: Achieves high ingress protection (dust-tight and protected against water jets) through a construction featuring a welded plastic case/window and an O-ring sealed process connection.

  • Accuracy Class 2.5: Meets industry standards for general-purpose pressure measurement applications.

  • Versatile Mounting Capable: Supports multiple installation options:

    • Panel Mounting (All Sizes): Optional mounting bracket is available for instruments with a back mount process connection.

    • Front Flange Mounting (2.5" only): The 2.5" (63 mm) version with a back mount process connection is alternatively offered with a mounting flange on the front, ideal for installations where panel mounting must be done from the front side.

Contact Us

Share

Specifications

Wika 113.13BC
Nominal Size [B] 2", [C] 2.5"
Scale Range ￭ psi ￭, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, ￭ psi / inHg ￭, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ bar ￭, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG514] 0/140 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG525] 0/250 bar, [BG532] 0/315 bar, [BG540] 0/400 bar, ￭ bar vacuum ￭, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV431] -1/30 bar, ￭ kPa ￭, [LG270] 0/70 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG380] 0/800 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG470] 0/7000 kPa, [LG480] 0/8000 kPa, [LG510] 0/10000 kPa, [LG514] 0/14000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG525] 0/25000 kPa, [LG532] 0/31500 kPa, [LG540] 0/40000 kPa, ￭ kPa vacuum ￭, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, ￭ MPa ￭, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG470] 0/7 MPa, [EG510] 0/10 MPa, [EG514] 0/14 MPa, [EG516] 0/16 MPa, [EG520] 0/20 MPa, [EG525] 0/25 MPa, [EG532] 0/31.5 MPa, [EG540] 0/40 MPa, ￭ MPa vacuum ￭, [EV310] -0.1/0 MPa, [EV316] -0.1/0.06 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV330] -0.1/0.2 MPa, [EV340] -0.1/0.3 MPa, [EV350] -0.1/0.4 MPa, [EV360] -0.1/0.5 MPa, [EV380] -0.1/0.7 MPa, [EV410] -0.1/0.9 MPa, [EV411] -0.1/1 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, ￭ kg/cm2 ￭, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, [KG469] 0/70 kg/cm2, [KG498] 0/100 kg/cm2, [KG514] 0/140 kg/cm2, [KG516] 0/160 kg/cm2, [KG520] 0/200 kg/cm2, [KG525] 0/250 kg/cm2, [KG531] 0/315 kg/cm2, ￭ kg/cm2 vacuum ￭, [KV298] -1/0 kg/cm2, [KV316] -1/0.6 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV329] -1/2 kg/cm2, [KV339] -1/3 kg/cm2, [KV349] -1/4 kg/cm2, [KV359] -1/5 kg/cm2, [KV378] -1/7 kg/cm2, [KV398] -1/9 kg/cm2, [KV411] -1/10 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2
2nd Scale [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2
Process Connection [GA] G 1/8 B, [GB] G 1/4 B, [NH] 1/8 NPT, [NB] 1/4 NPT, [RD] R 1/8-ISO7 (DIN2999), [RE] R 1/4-ISO7 (DIN2999)
Connector Location [U] Lower Mount, [A] Back Mount
Mounting Flange / Bracket [ZL] Without, [GL] U-Clamp Bracket, Zinc Plated Steel
Restrictor [Z] Without, [L] Brass, D 0.3, [M] Brass, Orifice (0.5mm / 0.02 in)
Thread Protection [Z2] Without, [12] With Thread Protection
Case [VZ] Black Plastic for Panel Mounting
Accuracy Class [JZZ] +/- 3/2/3% (ASME B40.100 Grade B)
Special Design Features [Z] Without
Case Filling [A-ZZZC] Glycerin
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z] Without
Pointer [C] Standard
Packing [2] Single Packing
Gauge Features
Gauge: Brand Wika
Gauge: Product Unit of Measure psi / inHg, bar, kPa, MPa, kg/cm2
Gauge: Process Connection Location Center Back Mount
Gauge: Case Material Plastic
Gauge: Window Plastic, Clear
Gauge: Dial Material Plastic
Gauge: Pointer Material Plastic
Gauge: Bezel Material None
Gauge: Window Ring Without
Gauge: Wetted Material Copper Alloy (Brass)
Gauge: Fill Type Liquid Filled / Fillable
Gauge: Dial Size 2 in (50 mm), 2-1/2 in (63 mm & 68 mm)
Gauge: Process Connection Size 1/8 NPT, G 1/4 B, G 1/8 B, 1/4 NPT, R 1/4-ISO7, R 1/8-ISO7
Gauge: Accuracy ±3%, ±2%
Gauge: Measuring Principle Bourdon Tube
Gauge: Pressure Type Gauge Pressure
Gauge: Model 113.13
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
