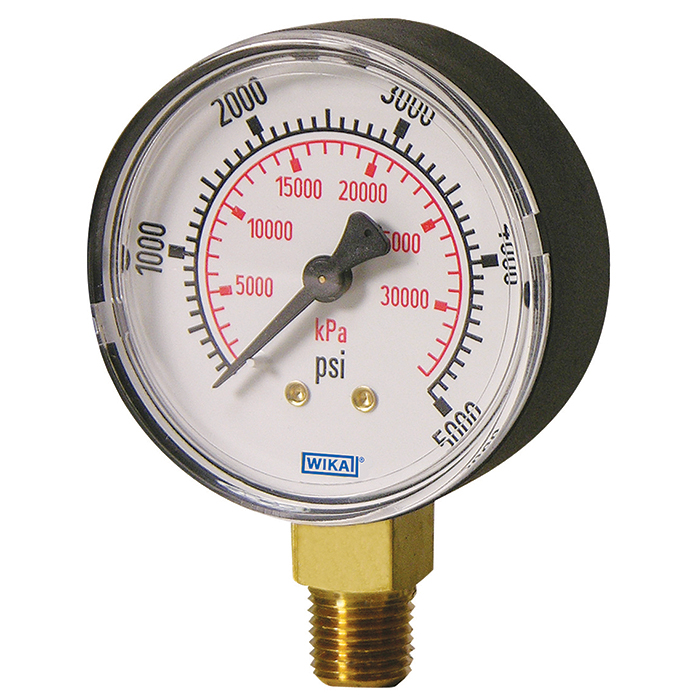

111.10 Series 4" Dry Plastic Pressure Gauge, Brass Wetted Parts
Manufacturer: Wika Instrument Lp
Mfg Product Code:
Introducing the Wika 111.10 Series Brass Dry Pressure Gauge, a robust and reliable instrument designed to meet the rigorous demands of hydraulic and pneumatic systems, pumps, compressors, water systems, and regulators. Engineered with precision and durability in mind, this pressure gauge is your go-to solution for accurate pressure measurement across various industrial applications.
Crafted with copper alloy wetted parts, the Series 111.10 ensures compatibility with a wide range of fluid mediums, making it suitable for environments where the potential for clogging or corrosion is a concern. Whether you're dealing with aggressive chemicals or challenging operating conditions, rest assured that this gauge will deliver consistent performance and longevity.
Featuring a sturdy construction, the gauge is encased in your choice of either black plastic or painted steel, providing protection against external elements and ensuring reliability in harsh environments. Its lower mount (LM) process connection offers easy installation and integration into existing systems, enhancing versatility and convenience.
With its precision engineering, durable materials, and versatile design, the Wika 111.10 Series Brass Dry Pressure Gauge is the ideal solution for monitoring pressure with confidence and accuracy in hydraulic and pneumatic systems, pumps, compressors, water systems, regulators, and more. Trust in its reliability to keep your operations running smoothly and efficiently.
Order Code Prefix: US-111.10-E-
Specifications
| Wika 111.10E | |
|---|---|
| Scale Range | ￭ psi ￭ or [PG269] 0/10 psi or [PG310] 0/15 psi or [PG321] 0/30 psi or [PG341] 0/60 psi or [PG369] 0/100 psi or [PG410] 0/150 psi or [PG411] 0/160 psi or [PG414] 0/200 psi or [PG417] 0/250 psi or [PG421] 0/300 psi or [PG428] 0/400 psi or [PG434] 0/500 psi or [PG441] 0/600 psi or [PG455] 0/800 psi or [PG469] 0/1000 psi or [PG510] 0/1500 psi or [PG514] 0/2000 psi or [PG521] 0/3000 psi or [PG528] 0/4000 psi or [PG534] 0/5000 psi or ￭ inHg / psi ￭ or [PV310] -30 inHg/0 psi or [PV321] -30 inHg/15 psi or [PV331] -30 inHg/30 psi or [PV352] -30 inHg/60 psi or [PV379] -30 inHg/100 psi or [PV412] -30 inHg/160 psi or [PV415] -30 inHg/200 psi or [PV422] -30 inHg/300 psi or ￭ bar ￭ or [BG260] 0/0.6 bar or [BG310] 0/1 bar or [BG325] 0/2.5 bar or [BG340] 0/4 bar or [BG360] 0/6 bar or [BG410] 0/10 bar or [BG416] 0/16 bar or [BG420] 0/20 bar or [BG425] 0/25 bar or [BG440] 0/40 bar or [BG460] 0/60 bar or [BG470] 0/70 bar or [BG510] 0/100 bar or [BG516] 0/160 bar or [BG521] 0/210 bar or [BG525] 0/250 bar or ￭ bar vacuum ￭ or [BV310] -1/0 bar or [BV316] -1/0.6 bar or [BV325] -1/1.5 bar or [BV340] -1/3 bar or [BV360] -1/5 bar or [BV410] -1/9 bar or [BV416] -1/15 bar |
| 2nd Scale | [Z] Without or [B] Bar or [L] kPa or [K] kg/cm2 |
| Process Connection | [NH] 1/8 NPT or [NB] 1/4 NPT |
| Connector Location | [U] Lower Mount or [E] 3 o'clock or [G] 9 o'clock or [D] 12 o'clock |
| Case | [AAZZE] Black Plastic or [ACZZE] Black Steel |
| Restrictor | [ZJZZ-ZZ1C-Z] Without or [AJZZ-ZZ1C-Z] Brass, D 0.3 |
| Dial | [BZ] Aluminum, White, w/Stop Pin or [CZ] Aluminum, White, w/o Stop Pin |
| Thread Protection | [ZZ] Without or [1Z] With Thread Protection |
| Protective Rubber Cap | [B-2] Blue Rubber or [Z-2] Without |
| Process Connection Surface Area | [AUA] Brass or [EUA] Nickel Plated |
| Color for Inner Scale | [Z] Without or [C] Red or [A] Black |
| Dial Background | [1ZZZZZZ] White or [LZZZZZZ] Luminous Color |
| Manufacturer Logo | [2] WIKA® or [Z] Without |
| Stop Pin on Dial | [1ZZZZZ] At Zero or [ZZZZZZ] Without |
| Nominal Size | 4" |
| Bezel | [ZZ] Without |
| Window | [E] Polycarbonate |
| Accuracy Class | [J] +/- 3/2/3% (ASME B40.100 Grade B) |
| Set / Drag Pointer | [Z] Without |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Movement | [1] Copper Alloy |
| Pointer | [C] Standard Pointer |
| Internal Tap in Connection | [Z] Without |
| Serial Number on Dial | [Z] Without |
| PTFE Tape on Connection | [Z] Without |
| Packing | [2] Single Packing |
| Pressure Gauge Standard | [U] US-Standard |
| Color for Outer Scale | [A] Black |
| Text for Dial | [Z] Without |
| Logo Options | [ZZZZZ] Without |
| Additional Mark | [Z] Without, [Z] Without |
| Norm-Mark on Dial | [Z] Without |
| Safety Mark on Dial | [Z] Without |
| Accuracy Class on Dial | [Z] Without |
| CE Mark on Dial | [Z] Without |
| Gauge Features | |
|---|---|
| *Gauge Brand | Wika |
| *Model | 111.10 |
| *Dial Size | 4 in (100 mm) |
| *Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| *Pressure Type | Gauge Pressure |
| *Measuring Principle | Bourdon Tube |
| *Fill Type | Dry |
| *Product Unit of Measure | psi / inHg, bar |
| *Process Connection Size | 1/8 NPT, 1/4 NPT |
| *Process Connection Location | Lower Mount, 3 o'clock, 9 o'clock, 12 o'clock |
| *Wetted Material | Copper Alloy (Brass) |
| *Accuracy | ±3% |
| *Case Material | Plastic, Chrome-Plated, Plastic |
| *Window | Snap-In, Clear Plastic, Polycarbonate, Flat Instrument Glass |
